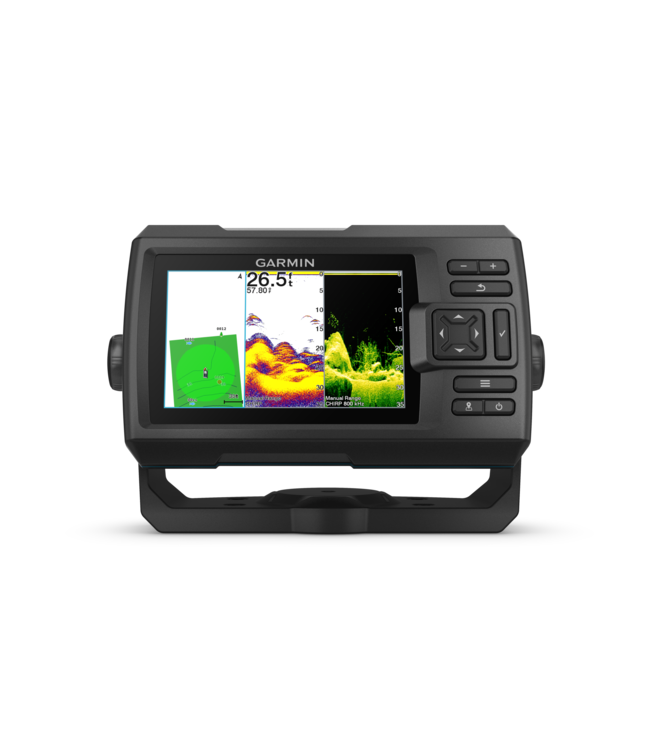

CLEAR, COLORFUL SONAR
Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 5” fishfinder.
BUILT-IN SONAR
Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü sca...Read more
CLEAR, COLORFUL SONAR
Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 5” fishfinder.

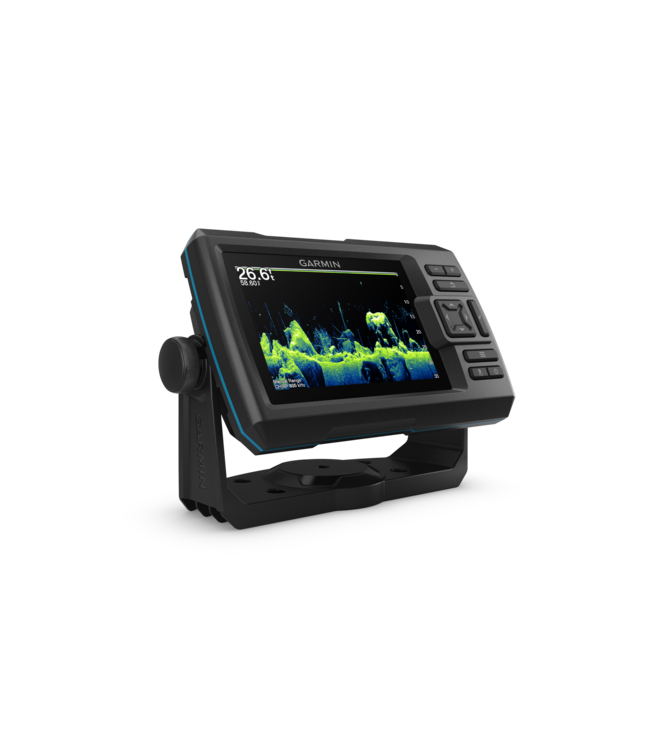

BUILT-IN SONAR
Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar.
WAYPOINT MARKING
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

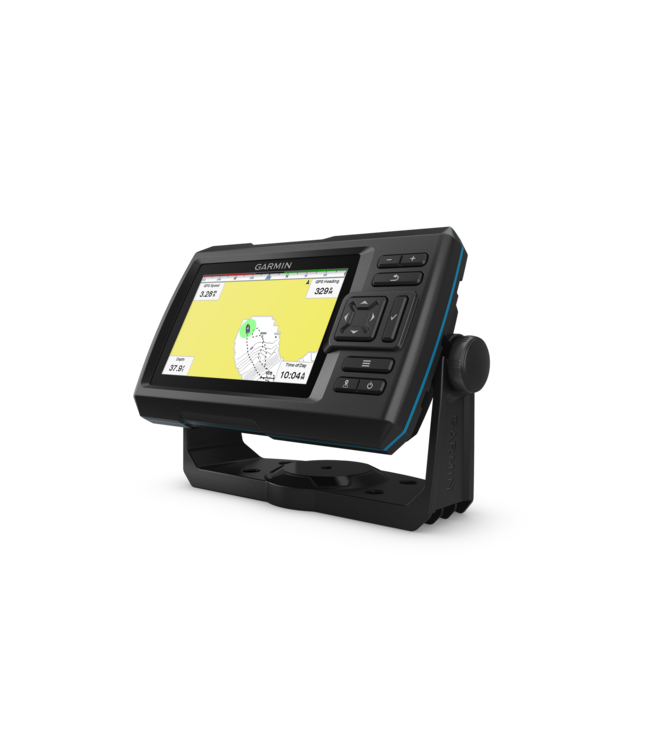

HIGH-SENSITIVITY GPS
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.
QUICKDRAW CONTOURS
Nobody knows the waters you fish better than you. With the STRIKER Vivid 5cv fishfinder, you can store up to 2 million acres of maps with 1’ contours2.
INCLUDED HARDWARE
The STRIKER Vivid 5cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.
| Display resolution | 800 x 480 pixels |
| Physical dimensions | 7.4’’ x 4.5’’ x 2.1’’ (18.8 x 11.6 x 5.4 cm) |
| Water rating | IPX7 |
| Weight |
1.0 lb (0.5 kg) |
| Display type | WVGA color |
| Fish Symbol ID (helps identify fish targets) | Yes |
| Transmit power | 500 W (RMS) |
| Water temperature log and graph | Yes |
| Audible alarms | Yes |
| AutoGain Technology (minimizes clutter, maximizes targets) | Yes |
| Dual-beam (77/200 kHz) sonar capable | Yes |
| Additional |
|
| Water temperature sensor included | Yes |
| Split-screen zoom | Yes |
| A-scope (real time display of fish passing through transducer beam) | Yes |
| Adjustable depth line (measures depth of underwater objects) | Yes |
| Dual-frequency (50/200 kHz) sonar capable | Yes |
| Bottom lock (shows return from the bottom up) | Yes |
| Frequencies supported |
Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü 260/455/800 kHz |
| Ultrascroll® (displays fish targets at higher boat speeds) | Yes |
